10398 | Lumberg Automation

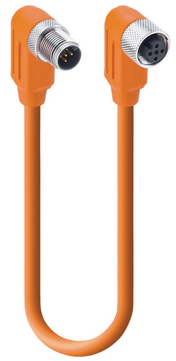

Sensor actuator cable, M12-cable plug, angled to M12-cable socket, angled, 5 pole, 5 m, PVC, orange, 4 A, 10398
Unit Price (€ / pc.)
35.7952 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Actuator/sensor double-ended cordset, RSWTS 5-RKWTS 5-183/5 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male angled A-coded orange 5-pin M12 Standard connector to female angled A-coded orange 5-pin M12 Standard connector, shielded, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 0.34 mm².
Technical specifications

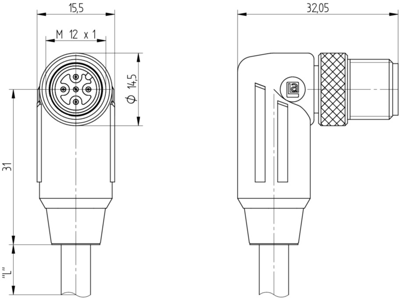

| Connection (1) | M12-cable plug, angled | |

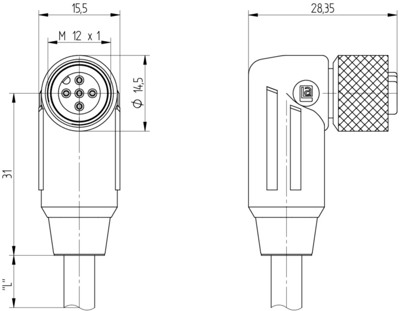

| Connection (2) | M12-cable socket, angled | |
| Colour | orange | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
