507VGM2E-1B | Luckylight

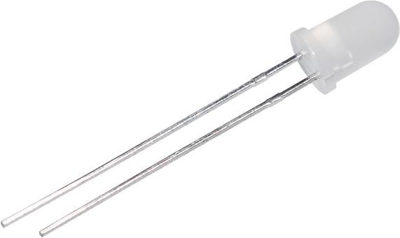

LED, THT, round, Ø 5.85 mm, red/yellow/green, 624 nm, 70 to 170 mcd, 60°, 507VGM2E-1B
Order No.: 66S0060
MPN:
507VGM2E-1B
Unit Price (€ / pc.)
0.2880 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2880 €
100 pcs.
0.2297 €
500 pcs.
0.1154 €
1000 pcs.
0.0869 €
5000 pcs.
0.0524 €
*incl. VAT plus shipping costs
Subject to prior sale
Through-hole LED/Multi-Color LED, 507VGM2E-1B, Luckylight
Through-hole Multi-Color LED is suitable for all applications requiring an instrument, switch, icon backlighting, status indication and more. This device is molded from advanced optical grade epoxy, which provides superior high temperature performance and excellent moisture resistance. Diffused or Water Clear is balanced to yield superior light output and a wide viewing angle.
Features
- Long life solid state reliability
- Low power consumption
- I.C. compatible
- Compliance with EU REACH
Applications
- Telephone
- Computer
- Circuit board
- Status indicators
- Commercial use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | red/yellow/green | |
| Wavelength | 624 nm | |
| Enclosure | round | |
| On-State Voltage | 2.4 V | |
| Lens | white | |
| diameter | 5.85 mm | |
| Light intensity min. | 0.07 cd | |
| Forward Current | 20 mA | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 2 | |
| Radiation angle | 60 ° | |
| Light intensity typ. | 0.17 cd | |
| Length | 8.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 20,000 pieces |
| MSL | MSL 2A |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
