503GD2E-1A | Luckylight

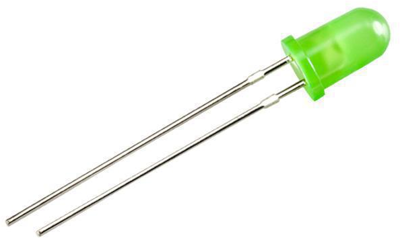

LED, THT, Ø 5 mm, green, 568 nm, 0.015 cd, 40°, 503GD2E-1A
Unit Price (€ / pc.)
0.1904 € *
Next delivery: 8,820 pcs. on 2025-12-05
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1904 €
100 pcs.
0.1523 €
500 pcs.
0.0762 €
1000 pcs.
0.0571 €
5000 pcs.
0.0343 €
*incl. VAT plus shipping costs
Subject to prior sale
LED, LTL-4233, Luckylight
Features
- Standard T-1 diameter package
- Wide viewing angle
- General purpose leads
- Reliable and rugged
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5 mm | |
| Radiation angle | 40 ° | |
| Lens | yellow | |
| Wavelength | 568 nm | |
| Forward Current | 20 mA | |
| max. operating temperature | 80 °C | |
| Length | 8.6 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.015 cd | |
| Assembly | THT | |
| Width | 4.9 mm | |
| min. operating temperature | -40 °C | |
| On-State Voltage | 2.6 V | |
| Colour of the LED | green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
