304WC1X-W6-3P | Luckylight

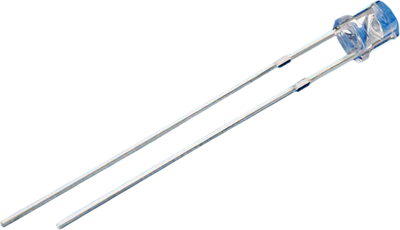

LED, THT, cylindrical, Ø 4.2 mm, white, 780 to 1300 mcd, 100°, 304WC1X-W6-3P
Order No.: 66S0101
MPN:
304WC1X-W6-3P
Unit Price (€ / pc.)
0.2547 € *
Available: 4,990 pcs.
Total Price:
2.55 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2547 €
100 pcs.
0.2035 €
500 pcs.
0.1023 €
1000 pcs.
0.0762 €
5000 pcs.
0.0464 €
*incl. VAT plus shipping costs
Subject to prior sale
Through-hole LED/White LED, 304WC1X-W6-3P, Luckylight
Through-hole white LED provides superior light output for excellent readability in sunlight for use in outdoor signal and sign applications. It is also suitable for all applications requiring backlighting and commercial lighting and more. This device is molded from advanced optical grade epoxy, which provides superior high temperature performance and excellent moisture resistance. Both diffused and water clear are balanced to yield superior light output.
Features
- Low power consumption
- General purpose leads
- Versatile mounting on p.c. board or panel
- I.C. compatible/low current requirement
- High efficiency
- Compliance with EU REACH
Applications
- Message panels
- Optical Indicators
- Backlighting
- Marker Lights
- Home appliance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Radiation angle | 100 ° | |
| On-State Voltage | 3.4 V | |
| Number of LEDs | 1 | |
| diameter | 4.2 mm | |
| Length | 3.85 mm | |
| Light intensity typ. | 1.3 cd | |
| min. operating temperature | -40 °C | |
| Enclosure | cylindrical | |
| max. operating temperature | 80 °C | |
| Light intensity min. | 0.78 cd | |
| Assembly | THT | |
| Colour of the LED | white | |
| Forward Current | 20 mA | |
| Lens | white |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 20,000 pieces |
| MSL | MSL 2A |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
