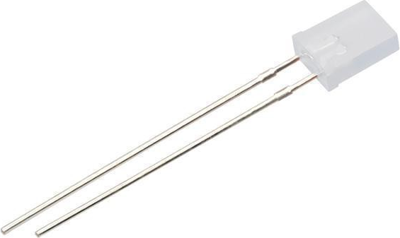

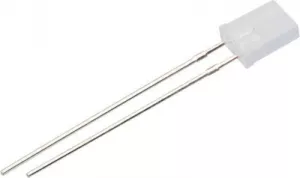

257YGM1G-1B | Luckylight
LED, THT, rectangular, yellow/green, 590 nm, 30 to 70 mcd, 150°, 257YGM1G-1B
Order No.: 66S0057
MPN:
257YGM1G-1B
Unit Price (€ / pc.)
0.2880 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2880 €
100 pcs.
0.2297 €
500 pcs.
0.1154 €
1000 pcs.
0.0869 €
5000 pcs.
0.0524 €
*incl. VAT plus shipping costs
Subject to prior sale
Through-hole LED/Multi-Color LED, 257YGM1G-1B, Luckylight
Through-hole Multi-Color LED is suitable for all applications requiring an instrument, switch, icon backlighting, status indication and more. This device is molded from advanced optical grade epoxy, which provides superior high temperature performance and excellent moisture resistance. Diffused or Water Clear is balanced to yield superior light output and a wide viewing angle.
Features
- Long life solid state reliability
- Low power consumption
- I.C. compatible
- Compliance with EU REACH
Applications
- Telephone
- Computer
- Circuit board
- Status indicators
- Commercial use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| Enclosure | rectangular | |
| Length | 7.05 mm | |
| Assembly | THT | |
| min. operating temperature | -40 °C | |
| Light intensity typ. | 0.07 cd | |
| Colour of the LED | yellow/green | |
| On-State Voltage | 2.4 V | |
| Number of LEDs | 2 | |
| Radiation angle | 150 ° | |
| Forward Current | 20 mA | |
| Light intensity min. | 0.03 cd | |
| Wavelength | 590 nm | |
| Lens | white | |
| Width | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2A |
| Original Packaging | Bulk with 20,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
