204YD2A-1B | Luckylight
LED, THT, yellow, 590 nm, 160 to 270 mcd, 60°, 204YD2A-1B
Order No.: 66S0043
MPN:
204YD2A-1B
Unit Price (€ / pc.)
0.1666 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1666 €
100 pcs.
0.1333 €
500 pcs.
0.0666 €
1000 pcs.
0.0500 €
5000 pcs.
0.0298 €
*incl. VAT plus shipping costs
Subject to prior sale

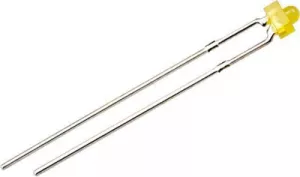

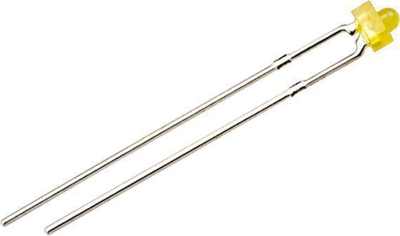

Through-hole LED/Tower LED, 204YD2A-1B, Luckylight
A Through-hole Tower LED is suitable for all applications requiring an instrument, switch, icon backlighting, and general status indication. There is 1 type of technology-based LED lamp. The chip with GaP technology is for low to moderate light output requirements, and the one with AllnGaP or InGaN technology is for high brightness light output. This device is molded from advanced optical grade epoxy, which provides superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design is balanced to yield superior light output.
Features
- Low power consumption
- General purpose leads
- High efficiency
- Reliable and robust
- Compliance with EU REACH
Applications
- Telephone
- Computer
- Circuit board
- Status indicators
- Commercial use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 80 °C | |
| Assembly | THT | |
| On-State Voltage | 2.4 V | |
| Number of LEDs | 1 | |
| Light intensity min. | 0.16 cd | |
| Lens | yellow | |
| Colour of the LED | yellow | |
| Radiation angle | 60 ° | |
| Forward Current | 20 mA | |
| Wavelength | 590 nm | |
| Width | 2.4 mm | |
| Light intensity typ. | 0.27 cd | |
| Length | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2A |
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Bulk with 20,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
