204AD1F-1B | Luckylight
LED, THT, orange, 605 nm, 20 to 45 mcd, 130°, 204AD1F-1B
Order No.: 66S0033
MPN:
204AD1F-1B
Unit Price (€ / pc.)
0.1666 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1666 €
100 pcs.
0.1333 €
500 pcs.
0.0666 €
1000 pcs.
0.0500 €
5000 pcs.
0.0298 €
*incl. VAT plus shipping costs
Subject to prior sale

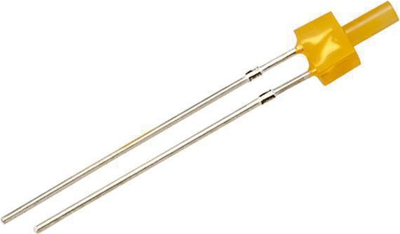

Through-hole LED/Tower LED, 204AD1F-1B, Luckylight
A Through-hole Tower LED is suitable for all applications requiring an instrument, switch, icon backlighting, and general status indication. There is 1 type of technology-based LED lamp. The chip with GaP technology is for low to moderate light output requirements, and the one with AllnGaP or InGaN technology is for high brightness light output. This device is molded from advanced optical grade epoxy, which provides superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design is balanced to yield superior light output.
Features
- Low power consumption
- General purpose leads
- High efficiency
- Reliable and robust
- Compliance with EU REACH
Applications
- Telephone
- Computer
- Circuit board
- Status indicators
- Commercial use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 605 nm | |
| max. operating temperature | 80 °C | |
| Length | 8.05 mm | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 1 | |
| Width | 4.8 mm | |
| On-State Voltage | 2.4 V | |
| Colour of the LED | orange | |
| Lens | orange | |
| Light intensity typ. | 0.045 cd | |
| Forward Current | 20 mA | |
| Light intensity min. | 0.02 cd | |
| Radiation angle | 130 ° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| MSL | MSL 2A |
| Original Packaging | Bulk with 20,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
