BCK-1001 | Lorlin Electronics

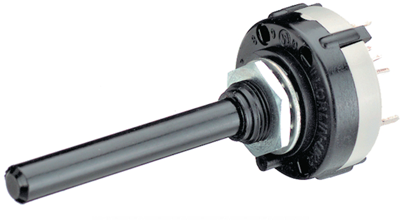

Encoding rotary switch, 16 pole, hexadecimal, straight, 150 mA/50 V AC/DC, BCK-1001
Order No.: 17G495
EAN: 4099889203141
MPN:
BCK-1001
Unit Price (€ / pc.)
7.4732 € *
Next delivery: 33 pcs. on 2025-09-26
Total Price:
7.47 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4732 €
10 pcs.
6.5688 €
100 pcs.
5.7715 €
250 pcs.
5.5573 €
1000 pcs.
5.1884 €
*incl. VAT plus shipping costs
Subject to prior sale
Rotary coding switches, type Lorlin BCK.
With hexadecimal code; Housing: polyamide 6.6. Contacts: brass, silver-plated. Contact rating: 150 mA/50 V AC/DC. Dielectric strength: 250 VAC. Contact resistance: max. 50 mohm. Useful life: 10000 cycles. Operating temperatures: –30 to +85 °C. Bushing thread: M10 x 0.75. Shaft: D 6.0 mm, L 50 mm.
Type: BCK1001, coding switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | hexadecimal | |
| Breaking capacity | 150 mA/50 V AC/DC | |
| Version | encoding rotary switch | |
| contact surface | silver-plated | |
| Pin number | 16 pole | |
| Design | straight | |
| Actuation | on top | |
| Connection | PCB pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
