RMS-1130 | Lorlin Electronics

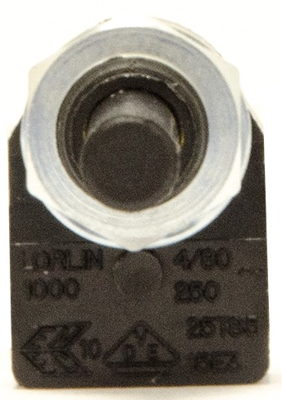

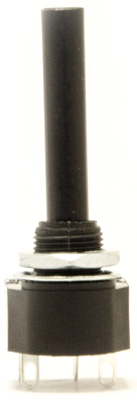

Step rotary switches, 1 pole, 2 stage, 45°, 4 A, 12 V, RMS-1130
Order No.: 15G9222
EAN: 4099889220735
MPN:
RMS-1130
Unit Price (€ / pc.)
3.7128 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
371.28 € *
Price list
Quantity
Price per unit*
100 pcs.
3.7128 €
200 pcs.
3.4986 €
300 pcs.
3.3201 €
*incl. VAT plus shipping costs
Subject to prior sale
Multistep rotary switches, type Lorlin RMS.

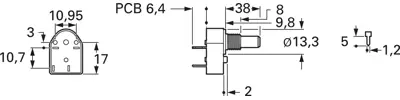

Double-pole ON/OFF switch. PCB mounting; Housing: polyester G.F, black. Terminals: silver-plated brass. Breaking capacity: 4.0 A/250 VAC, 10 A/12 VDC. Test voltage: 3.0 kVAC. Useful life: 15000 cycles. Operating temperatures: –25 to +85 °C. Shaft: D 6.0 mm, L 38 mm
Type: RMS1130, multistep rotary switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching angle | 45 ° | |
| Number of steps | 2 | |
| switching current | 4 A | |
| Rated voltage | 12 V | |
| Connection | PCB connection | |
| Product type | step rotary switches | |
| Pin number | 1 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
