CK-1049 | Lorlin Electronics

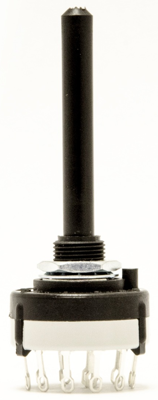

Step rotary switches, 1 pole, 12 stage, 30°, On-On, interrupting, 150 mA, 250 V, CK-1049
Order No.: 16G355
EAN: 4099889221114
MPN:
CK-1049
Unit Price (€ / pc.)
3.8318 € *
Available: 121 pcs.
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.4272 €
50 pcs.
2.9750 €
100 pcs.
2.8441 €
500 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale
Multistep rotary switches, type Lorlin CK.
Closed version, with 1 contact bank; load capacity: 150 mA/250 V AC/DC, dielectric strength: 1500 VAC. Insulation resistance: min. 1000 Mohm on 500 VDC. Contact resistance: max. 20 mohm. Operating temperatures: –30 to +85 °C. Housing: polyamide 6.6, glass fiber-reinforced. Contacts: brass, silver-plated. Bushing thread: M10 x 0.75. Shaft: D 6.0 mm, L 50 mm.

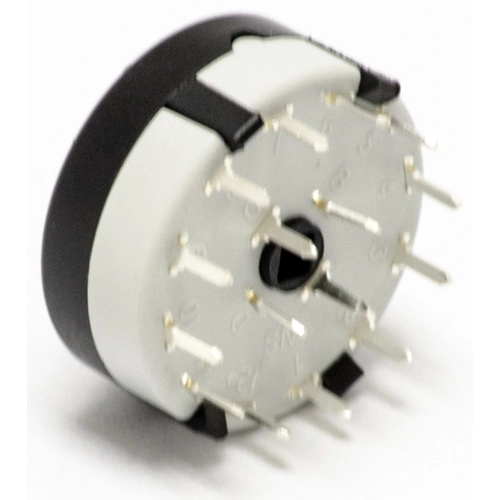

With PCB terminals and break before make action.
Technical attributes (type, number of poles x positions (number of poles x contacts), with and without index pin): CK1049, 1 x 12 contacts, with index pin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shift position | On-On | |
| Switching angle | 30 ° | |
| Pin number | 1 pole | |
| Switching Mode | interrupting | |
| Connection | PCB connection | |
| Rated voltage | 250 V | |
| switching current | 150 mA | |
| Product type | step rotary switches | |
| Number of steps | 12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
