CK-1048 | Lorlin Electronics

Step rotary switches, 1 pole, 12 stage, 30°, On-On, interrupting, 150 mA, 250 V, CK-1048

Order No.: 16G3518
EAN: 4099889221084
MPN:
CK-1048

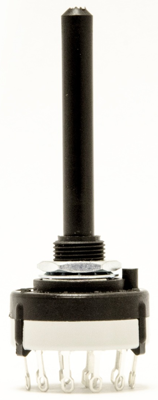

CK-1048 Lorlin Electronics Rotary Switches and Selector Switches Image 1
CK-1048 Lorlin Electronics Rotary Switches and Selector Switches Image 2
CK-1048 Lorlin Electronics Rotary Switches and Selector Switches Image 3
Image may differ
Unit Price (€ / pc.)
3.8318 € *
Available: 79 pcs.
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.4272 €
50 pcs.
2.9750 €
100 pcs.
2.8441 €
500 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale

Multistep rotary switches, type Lorlin CK.

Closed version, with 1 contact bank; load capacity: 150 mA/250 V AC/DC, dielectric strength: 1500 VAC. Insulation resistance: min. 1000 Mohm on 500 VDC. Contact resistance: max. 20 mohm. Operating temperatures: –30 to +85 °C. Housing: polyamide 6.6, glass fiber-reinforced. Contacts: brass, silver-plated. Bushing thread: M10 x 0.75. Shaft: D 6.0 mm, L 50 mm.

With PCB terminals and break before make action.

Technical attributes (type, number of poles x positions (number of poles x contacts), with and without index pin): CK1048, 1 x 12 contacts, without index pin

Technical specifications
Filter Property Value
Rated voltage 250 V
Connection PCB connection
Shift position On-On
switching current 150 mA
Pin number 1 pole
Switching angle 30 °
Switching Mode interrupting
Number of steps 12
Product type step rotary switches
Logistics
Property Value
Country of origin GB
Customs tariff number 85365019
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
