CK-1042 | Lorlin Electronics

Step rotary switches, 4 pole, 3 stage, 30°, On-On-On, short-circuiting, 150 mA, 250 V, CK-1042

Order No.: 16G363
EAN: 4099889221190
MPN:
CK-1042

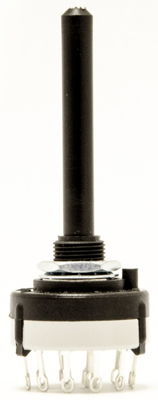

CK-1042 Lorlin Electronics Rotary Switches and Selector Switches Image 1

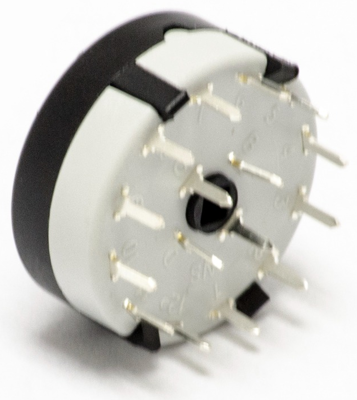

CK-1042 Lorlin Electronics Rotary Switches and Selector Switches Image 2
CK-1042 Lorlin Electronics Rotary Switches and Selector Switches Image 3
Image may differ
Unit Price (€ / pc.)
2.9750 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
148.75 € *
Price list
Quantity
Price per unit*
50 pcs.
2.9750 €
100 pcs.
2.8441 €
500 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale

Multistep rotary switches, type Lorlin CK.

Closed version, with 1 contact bank; load capacity: 150 mA/250 V AC/DC, dielectric strength: 1500 VAC. Insulation resistance: min. 1000 Mohm on 500 VDC. Contact resistance: max. 20 mohm. Operating temperatures: –30 to +85 °C. Housing: polyamide 6.6, glass fiber-reinforced. Contacts: brass, silver-plated. Bushing thread: M10 x 0.75. Shaft: D 6.0 mm, L 50 mm.

With solder terminals and make before break action.

Technical attributes (type, number of poles x positions (number of poles x contacts), with and without index pin): CK1042, 4 x 3 contacts, with index pin

Technical specifications
Filter Property Value
Connection solder connection
Number of steps 3
Switching angle 30 °
Pin number 4 pole
Switching Mode short-circuiting
Rated voltage 250 V
Shift position On-On-On
switching current 150 mA
Product type step rotary switches
Logistics
Property Value
Country of origin GB
Customs tariff number 85365019
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
