V9MLA0603NHAUTO | Littelfuse
Varistor, SMD 0603, VV 13.5 V, 30 A, 9 V (DC), 6.5 V (AC), 0.1 J, V9MLA0603NHAUTO
Unit Price (€ / pc.)
0.1940 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

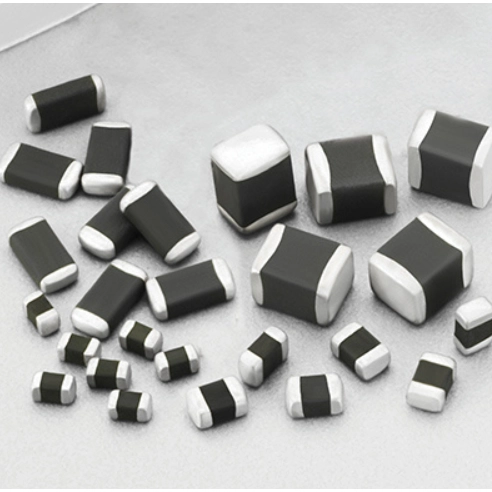

Multi-Layer varistor, V9MLA0603NHAUTO, Littelfuse
This transient voltage surge suppression device is designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). It is typically applied to protect integrated circuits and other components at the circuit board level.
Features
- AEC - Q200 compliant
- RoHS compliant
- Inherent bi-directional clamping
- No plastic or epoxy packaging assures better than UL94V-0 flammability rating
Technical specifications
| Rated voltage (DC) | 9 V | |
| Varistor Voltage Type | 13.5 V | |
| Energy absorption | 0.1 J | |
| Rated voltage (AC) | 6.5 V | |
| Design | SMD 0603 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| max. Surge current, transient (8/20 µs) | 30 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
