V56MLA1206NH | Littelfuse

Varistor, SMD 1206, VV 69 V, 180 A, 56 V (DC), 40 V (AC), 1 J, V56MLA1206NH

Order No.: 74P7765
EAN: 4099891846305
MPN:
V56MLA1206NH
Series: MLA
V56MLA1206NH Littelfuse Varistors

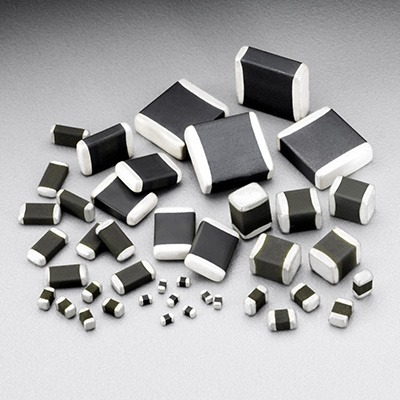

Image may differ
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1,011.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
0.4046 €

Multilayer varistor, V56MLA1206NH, Littelfuse

This transient voltage surge suppression device is designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). It is suitable for numerous applications on power supply, control and signal lines.

Features

  • Halogen-free and RoHS compliant
  • Multilayer ceramic construction technology
  • Inherent bi-directional clamping
Technical specifications
Filter Property Value
min. operating temperature -40 °C
max. operating temperature 125 °C
Rated voltage (AC) 40 V
Rated voltage (DC) 56 V
Varistor Voltage Type 69 V
max. Surge current, transient (8/20 µs) 180 A
Design SMD 1206
Energy absorption 1 J
Logistics
Property Value
Customs tariff number 85334090
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
