V48AUMLA2220H | Littelfuse
Varistor, SMD 2220, VV 60.5 V, 10 A, 48 V (DC), 25 J, V48AUMLA2220H
Unit Price (€ / pc.)
2.3681 € *
Standard delivery time from the manufacturer is: 12 Weeks

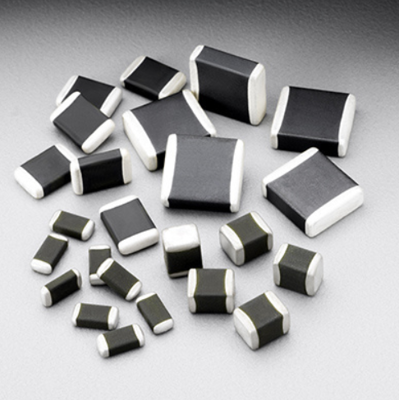

Multilayer varistor, V48AUMLA2220H, Littelfuse
The V48AUMLA2220H Multilayer transient surge suppressor was specifically designed to suppress the destructive transient voltages found in an automobile. The electronic systems in the automobile, e.g. antilock brake systems, direct ignition systems, engine control, airbag control systems, wiper motor controls, etc., are susceptible to damage from these voltage transients and thus require protection.
Features
- AEC - Q200 compliant
- RoHS Compliant
- Leadless, surface mount chip form
- High peak surge current capability
Applications
- Suppression of inductive switching or other transient events such as EFT and surge voltage at the circuit board level
- Provides on-board transient voltage protection for Ics and transistors
- Used to help achieve electromagnetic compliance of end products
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Varistor Voltage Type | 60.5 V | |
| Rated voltage (DC) | 48 V | |
| max. operating temperature | 125 °C | |
| max. Surge current, transient (8/20 µs) | 10 A | |
| min. operating temperature | -40 °C | |
| Energy absorption | 25 J | |
| Design | SMD 2220 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85334090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
