V275LA10CP | Littelfuse

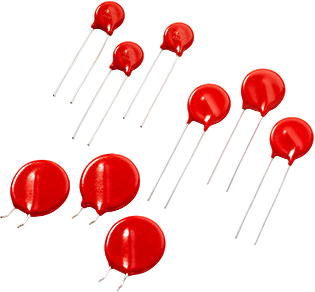

Varistor, radial, VV 430 V, 3500 A, 275 V (AC), 70 J, V275LA10CP
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 12 Weeks
Varistor, V275LA10CP, Littelfuse
The V275LA10CP is a metal-oxide varistor (MOV) specifically designed for high surge energy absorption ratings. This is achieved through a special dielectric material formulation which also results in higher repetitive surge ratings than other MOV types. It is primarily intended for use in AC line Transient Voltage Surge Suppressor (TVSS) product environment and other similar applications requiring high transient energy and peak current capability in a relatively small package size.
Features
- Lead-free
- Halogen-Free
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 275 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -55 °C | |
| max. Surge current, transient (8/20 µs) | 3500 A | |
| Grid | 8.5 mm | |
| Design | radial | |
| Varistor Voltage Type | 430 V | |
| Energy absorption | 70 J |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334090 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
