V25S460P | Littelfuse
Varistor, radial, VV 750 V, 22000 A, 615 V (DC), 460 V (AC), 690 J, V25S460P
Unit Price (€ / pc.)
1.7731 € *
Standard delivery time from the manufacturer is: 12 Weeks
Varistor, V25S460P, Littelfuse

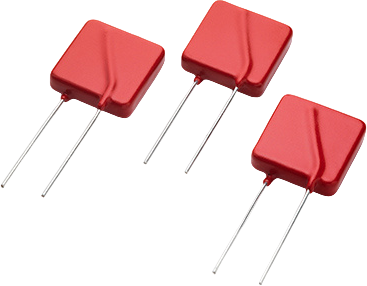

The V25S460P has a compact square disc which is made with radial wire leads and epoxy encapsulation. This product is designed for applications requiring high peak surge current ratings and high energy absorption capability. It is primarily intended for use in AC Line Voltage applications or other products that require voltage clamping of high transient surge currents from sources.
Features
- Lead-free
- Halogen-Free
- RoHS compliant
Applications
- Surge Protective Devices (SPD)
- Uninterruptable Power Supplies (UPS)
- AC Power Taps and Meters
- Lightning
- Inductive Load and Capacitor Bank Switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 615 V | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 460 V | |
| max. Surge current, transient (8/20 µs) | 22000 A | |
| max. operating temperature | 85 °C | |
| Grid | 13.7 mm | |
| Varistor Voltage Type | 750 V | |
| Design | radial | |
| Energy absorption | 690 J |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334090 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
