V20H460AUTO | Littelfuse

Varistor, radial, VV 750 V, 10000 A, 615 V (DC), 460 V (AC), 370 J, V20H460AUTO

Order No.: 74P7005
EAN: 4099891838706
MPN:
V20H460AUTO
Series: AUMOV
V20H460AUTO Littelfuse Varistors
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
910.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
900 pcs.
1.0115 €

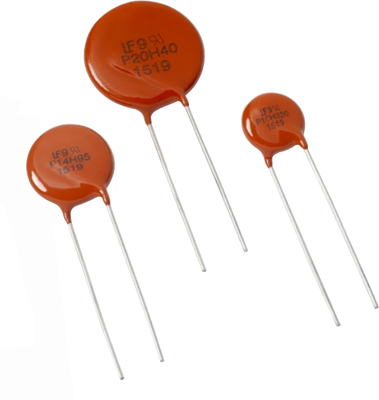

Varistor, V20H460AUTO, Littelfuse

V20H460AUTO is a Silicone Coated, Radial Leaded Varistor designed for automotive applications requiring load dump, jump start and surge voltage transient protection. The V20H460AUTO offers great surge withstanding capability for low DC voltage applications.

Features

  • Reduced footprint and volume required for voltage surge protection
  • Lead-free, halogen-free, and RoHS compliant
  • Meets the stringent quality standards of AEC-Q200

Applications

  • Body electronics systems
  • Powertrain systems
  • Infotainment system
  • Automotive control module protection
  • Motor or inductive load transient suppression
Technical specifications
Rated voltage (DC) 615 V
Varistor Voltage Type 750 V
Energy absorption 370 J
Grid 11 mm
Rated voltage (AC) 460 V
Design radial
min. operating temperature -40 °C
max. operating temperature 125 °C
max. Surge current, transient (8/20 µs) 10000 A
Logistics
Country of origin CN
Customs tariff number 85334090
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
