Varistor, V20H440PAH
Unit Price (€ / pc.)
0.7259 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

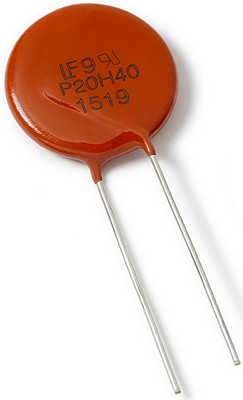

Varistor, V20H440P, Littelfuse
The V20H440P is a Silicone Coated, Radial Leaded Varistor specifically designed for applications requiring high surge energy absorption and high operating temperature of 125°C. It is designed to protect against indirect lightning strikes, switching surge transients, and abnormally fast transients.
Features
- Lead-free
- Halogen-Free
- RoHS compliant
Applications
- Industrial Automation Controls
- Solar Power Inverters
- Security Systems
- Fire Alarm and Smoke Detectors
- LED Lighting
- Base Transceiver Station (BTS) Power Supplies
Technical specifications
| Design | radial | |
| Energy absorption | 340 J | |
| max. Surge current, transient (8/20 µs) | 10000 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 440 V | |
| Rated voltage (DC) | 585 V | |
| Grid | 11 mm | |
| Varistor Voltage Type | 715 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
