V20H175AUTO | Littelfuse
Varistor, radial, VV 270 V, 10000 A, 225 V (DC), 175 V (AC), 180 J, V20H175AUTO
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 22 Weeks

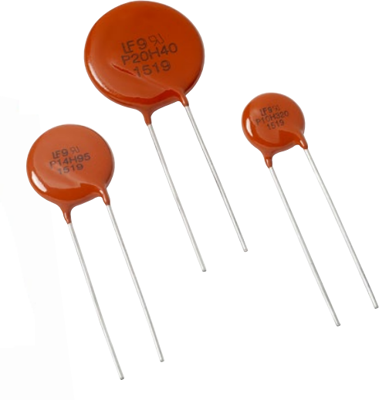

Varistor, V20H175AUTO, Littelfuse
V20H175AUTO is a Silicone Coated, Radial Leaded Varistor designed for automotive applications requiring load dump, jump start and surge voltage transient protection. The V20H175AUTO offers great surge withstanding capability for low DC voltage applications.
Features
- Reduced footprint and volume required for voltage surge protection
- Lead-free, halogen-free, and RoHS compliant
- Meets the stringent quality standards of AEC-Q200
Applications
- Body electronics systems
- Powertrain systems
- Infotainment system
- Automotive control module protection
- Motor or inductive load transient suppression
Technical specifications
| Rated voltage (DC) | 225 V | |
| Varistor Voltage Type | 270 V | |
| Energy absorption | 180 J | |
| Grid | 11 mm | |
| Rated voltage (AC) | 175 V | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| max. Surge current, transient (8/20 µs) | 10000 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334090 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
