V20E275AUTO | Littelfuse
Varistor, radial, VV 430 V, 10000 A, 350 V (DC), 275 V (AC), 260 J, V20E275AUTO
Unit Price (€ / pc.)
0.714 € *
Standard delivery time from the manufacturer is: 14 Weeks

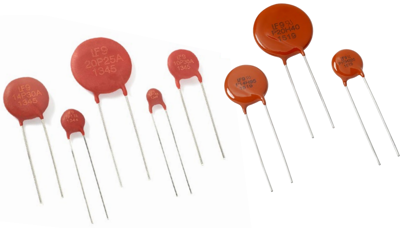

Varistor, V20E275AUTO, Littelfuse
V20E275AUTO is an Epoxy Coated, Radial Leaded Varistor designed for automotive applications requiring load dump, jump start and surge voltage transient protection. The V20E275AUTO offers great surge withstanding capability for low DC voltage applications.
Features
- Reduced footprint and volume required for voltage surge protection
- Lead-free, halogen-free, and RoHS compliant
Applications
- Body electronics systems
- Powertrain systems
- Infotainment system
- Automotive control module protection
- Motor or inductive load transient suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 350 V | |
| max. Surge current, transient (8/20 µs) | 10000 A | |
| Energy absorption | 260 J | |
| Rated voltage (AC) | 275 V | |
| Design | radial | |
| Varistor Voltage Type | 430 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Grid | 11 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334090 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
