V14H420P | Littelfuse

Name: Varistor, radial, VV 680 V, 6500 A, 560 V (DC), 420 V (AC), 185 J
Brand: Littelfuse
SKU: 74P6468
Price: 0.56 EUR
Availability: OutOfStock

Varistor, radial, VV 680 V, 6500 A, 560 V (DC), 420 V (AC), 185 J

Order No.: 74P6468

EAN: 4099891833336

MPN:

V14H420P

Series: HMOV

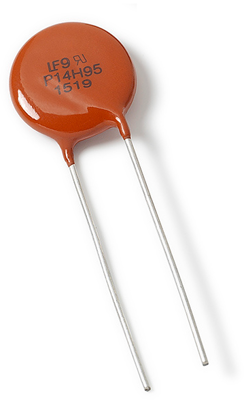

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 680 V

max. Surge current, transient (8/20 Âµs) 6500 A

Rated voltage (DC) 560 V

Rated voltage (AC) 420 V

Show 30 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.5593 € *

Available: 0 pcs.

Leadtime: 15 Weeks **

Add to Cart

Total Price:

0.56 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Varistor, V14H420P, Littelfuse

The V14H420P is a Silicone Coated, Radial Leaded Varistor specifically designed for applications requiring high surge energy absorption and high operating temperature of 125°C. It is designed to protect against indirect lightning strikes, switching surge transients, and abnormally fast transients.

Features

Lead-free
Halogen-Free
RoHS compliant

Applications

Industrial Automation Controls
Solar Power Inverters
Security Systems
Fire Alarm and Smoke Detectors
LED Lighting
Base Transceiver Station (BTS) Power Supplies

Technical specifications

	Design	radial
	Energy absorption	185 J
	max. Surge current, transient (8/20 Âµs)	6500 A
	max. operating temperature	125 °C
	min. operating temperature	-55 °C
	Rated voltage (AC)	420 V
	Rated voltage (DC)	560 V
	Grid	8.5 mm
	Varistor Voltage Type	680 V

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85334090

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
