V05E14AUTO | Littelfuse
Varistor, radial, VV 22 V, 400 A, 16 V (DC), 14 V (AC), 1 J, V05E14AUTO
Unit Price (€ / pc.)
0.1654 € *
Standard delivery time from the manufacturer is: 12 Weeks

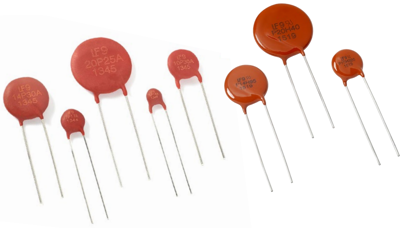

Varistor, V05E14AUTO, Littelfuse
V05E14AUTO is an Epoxy Coated, Radial Leaded Varistor designed for automotive applications requiring load dump, jump start and surge voltage transient protection. The V05E14AUTO offers great surge withstanding capability for low DC voltage applications.
Features
- Reduced footprint and volume required for voltage surge protection
- Lead-free, halogen-free, and RoHS compliant
Applications
- Body electronics systems
- Powertrain systems
- Infotainment system
- Automotive control module protection
- Motor or inductive load transient suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 14 V | |
| Rated voltage (DC) | 16 V | |
| Design | radial | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Energy absorption | 1 J | |
| Varistor Voltage Type | 22 V | |
| Grid | 6 mm | |
| max. Surge current, transient (8/20 µs) | 400 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85334090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
