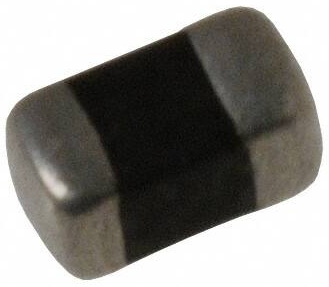

V0402MHS03NR | Littelfuse
Varistor, SMD 0402, 42 V (DC), 30 V (AC), 0.005 J, V0402MHS03NR
Unit Price (€ / pc.)
0.1714 € *
Standard delivery time from the manufacturer is: 15 Weeks
Varistor, V0402MHS03NR, Littelfuse
The V0402MHS03NR provides protection from ESD and EFT in high-speed data-line and other high frequency applications. The low capacitance of V0402MHS03NR permits usage in analog or digital circuits where it will not attenuate or distort the desired signal or data. Its size is ideal for high-density printed circuit boards, being typically applied to protect integrated circuits and other sensitive components. It is particularly well suited to suppress ESD events.
Features
- Halogen free and RoHS compliant
- Low leakage currents
Applications
- Data, Diagnostic I/O Ports
- USB, Video & Audio Ports
- Portable/HandHeld Products
- Mobile Communications
- Computer/DSP Products
- Industrial Instruments Including Medical
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 42 V | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 30 V | |
| max. operating temperature | 125 °C | |
| Design | SMD 0402 | |
| Energy absorption | 0.005 J |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334090 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
