TPSMF4L9.0A | Littelfuse

SMD TVS diode, unidirectional, 370 W, 9 V, SOD-123FL, Littelfuse TPSMF4L9.0A

Order No.: 74P5498
EAN: 4099891823634
MPN:
TPSMF4L9.0A
Series: TPSMF4L
TPSMF4L9.0A Littelfuse TVS Diodes

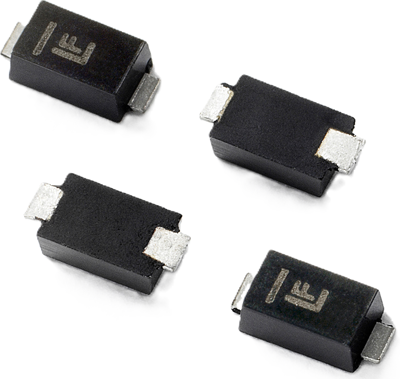

Image may differ
Unit Price (€ / pc.)
0.2261 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
678.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.2261 €

TVS Diode, TPSMF4L9.0A, Littelfuse

TPSMF4L9.0A is a Uni-directional Transient Voltage Suppression (TVS) Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, and it’s especially suitable for high reliability and automotive application.

Features

  • High reliability application and automotive grade AEC Q101 qualified
  • Excellent clamping capability
  • Low inductance
  • Matte tin lead–free plated
  • Halogen free and RoHS compliant

Applications

  • Protection of portable devices/hard drives
  • VCC bus, SSDs
  • POS terminal
  • Power supplies
  • Consumer electronic applications
Technical specifications
Continuous power loss 1 W
Rated blocking voltage 9 V
Assembly SMD
Enclosure SOD-123FL
Pulse power loss 370 W
Version unidirectional
min. operating temperature -55 °C
max. operating temperature 150 °C
Breakdown voltage 10 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
