TP5KP51A | Littelfuse

TVS diode, unidirectional, 5 kW, 51 V, P600, Littelfuse TP5KP51A

Order No.: 74P5088
EAN: 4099891819538
MPN:
TP5KP51A
Series: TP5KP
TP5KP51A Littelfuse TVS Diodes
Image may differ
Unit Price (€ / pc.)
1.4637 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,170.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
1.4637 €

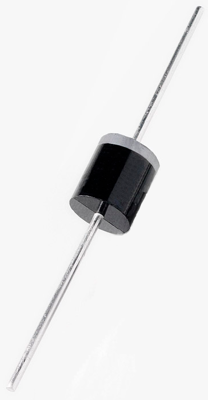

TVS Diode, TP5KP51A, Littelfuse

TP5KP51A is a Uni-directional axial leaded TVS Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

  • Fast response time
  • Excellent clamping capability
  • Low incremental surge resistance
  • Matte tin lead–free plated
  • Halogen free and RoHS compliant

Applications

  • Protection of I/O interfaces
  • VCC bus
  • Telecom
  • Computer
  • Industrial and consumer electronic applications
Technical specifications
Continuous power loss 8 W
Rated blocking voltage 51 V
Assembly THT
Enclosure P600
Pulse power loss 5 kW
Version unidirectional
min. operating temperature -55 °C
max. operating temperature 150 °C
Breakdown voltage 56.7 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
