SZSMF33AT1G | Littelfuse

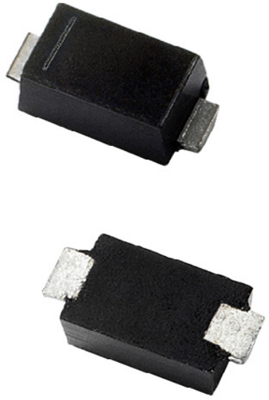

SMD TVS diode, unidirectional, 200 W, 33 V, SOD-123FL, Littelfuse SZSMF33AT1G
Unit Price (€ / pc.)
0.1928 € *
Standard delivery time from the manufacturer is: 17 Weeks
TVS Diode, SZSMF33AT1G, Littelfuse
The SZSMF33AT1G is designed to protect sensitive systems or components from high voltage, high energy transients. It offers a fast response time, low Zener impedance, high surge and excellent clamping capabilities. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and other industrial and consumer applications.
Features
- Zener Transient Overvoltage Suppressors
- Low Leakage
- Pb−Free and are RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 1 W | |
| min. operating temperature | -55 °C | |
| Breakdown voltage | 36.7 V | |
| max. operating temperature | 150 °C | |
| Version | unidirectional | |
| Assembly | SMD | |
| Pulse power loss | 200 W | |
| Rated blocking voltage | 33 V | |
| Enclosure | SOD-123FL |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
