SZ1SMC48AT3G | Littelfuse

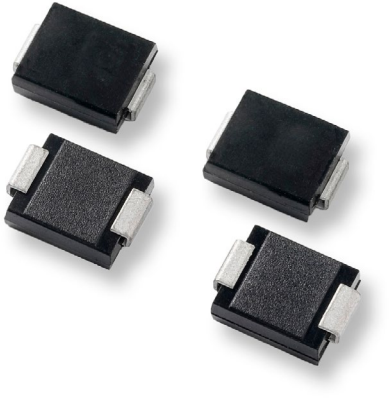

SMD TVS diode, unidirectional, 1.5 kW, 48 V, DO-214AB, Littelfuse SZ1SMC48AT3G
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
TVS Diode, SZ1SMC48AT3G, Littelfuse
The SZ1SMC48AT3G TVS Diode is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low zener impedance and fast response time.
Technical specifications
| Continuous power loss | 2 W | |
| Rated blocking voltage | 48 V | |
| Assembly | SMD | |
| Enclosure | DO-214AB | |
| Pulse power loss | 1.5 kW | |
| Version | unidirectional | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 175 °C | |
| Breakdown voltage | 53.3 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
