SZ1SMC13AT3G | Littelfuse

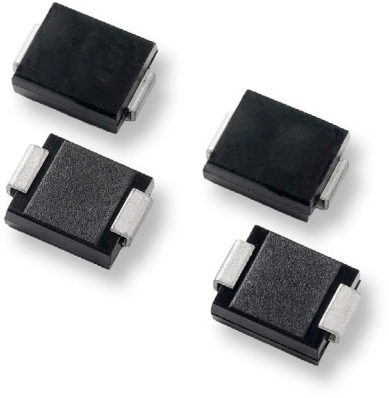

SMD TVS diode, unidirectional, 1.5 kW, 13 V, DO-214AB, Littelfuse SZ1SMC13AT3G
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 19 Weeks
TVS Diode, SZ1SMC13AT3G, Littelfuse
The SZ1SMC13AT3G TVS Diode is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low zener impedance and fast response time.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 175 °C | |
| Pulse power loss | 1.5 kW | |
| Continuous power loss | 2 W | |
| Rated blocking voltage | 13 V | |
| Breakdown voltage | 14.4 V | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Enclosure | DO-214AB | |
| Version | unidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
