SZ1SMB5.0AT3G | Littelfuse

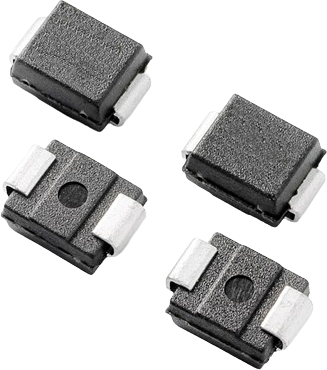

SMD TVS diode, unidirectional, 600 W, 5 V, DO-214AA, Littelfuse SZ1SMB5.0AT3G
Unit Price (€ / pc.)
0.2416 € *
Available in 4 Days: 4,980 pcs. - if ordered today
TVS Diode, SZ1SMB5.0AT3G, Littelfuse
The SZ1SMB5.0AT3G TVS Diode is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping and high surge capability, as well as fast response time.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | unidirectional | |
| Pulse power loss | 600 W | |
| Rated blocking voltage | 5 V | |
| Breakdown voltage | 6.4 V | |
| Continuous power loss | 4 W | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | DO-214AA | |
| Capacity | 2700 pF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
