SP8008-08UTG | Littelfuse

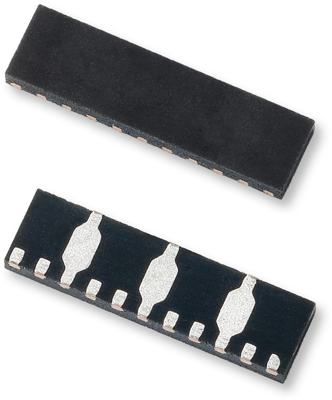

SMD TVS diode, bidirectional, 5 V, uDFN5515-14L, Littelfuse SP8008-08UTG
Unit Price (€ / pc.)
0.6069 € *
Available in 4 Days: 18,000 pcs. - if ordered today
Diode Array, SP8008-08UTG, Littelfuse
The SP8008-08UTG integrates eight channels of ultra low capacitance common mode protection for electronic equipment exposed to electrostatic discharges (ESD). This robust component can effectively protect against ESD events exceeding the IEC 61000-4-2 contact ESD level of ±8 kV without any performance degradation.
Features
- Halogen free, lead free and RoHS compliant
- UL Recognized compound meeting flammability rating V-0
- AEC-Q101 qualified
Applications
- LCD/LED Monitors
- Automotive displays
- Digital signage
- USB and HDMI interfaces
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 5 V | |
| max. operating temperature | 125 °C | |
| Capacity | 0.3 pF | |
| Assembly | SMD | |
| Breakdown voltage | 6 V | |
| min. operating temperature | -40 °C | |
| Enclosure | uDFN5515-14L | |
| Version | bidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
