SP724AHTG | Littelfuse

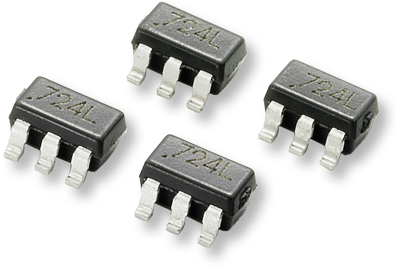

SMD TVS diode, bidirectional, 20 V, SOT23-6L, Littelfuse SP724AHTG
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 11 Weeks
Diode Array, SP724AHTG, Littelfuse
This product is a quad array of transient voltage clamping circuits designed to suppress ESD and other transient over-voltage events. It is used to help protect sensitive digital or analog input circuits on data, signal, or control lines operating on power supplies up to 20VDC.
Features
- Peak current capability
- Low input capacitance 3pF Typical
- ESD Interface per HBM Standards
Applications
- Microprocessor/Logic Input Protection
- Data Bus Protection
- Analog device input protection
- Voltage clamp
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 20 V | |
| max. operating temperature | 105 °C | |
| Capacity | 3 pF | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Enclosure | SOT23-6L | |
| Version | bidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
