SP4022-01FTG-C | Littelfuse

SMD TVS diode, bidirectional, 12 V, SOD323, Littelfuse SP4022-01FTG-C

Order No.: 74P4810
EAN: 4099891816759
MPN:
SP4022-01FTG-C
Series: SP4022

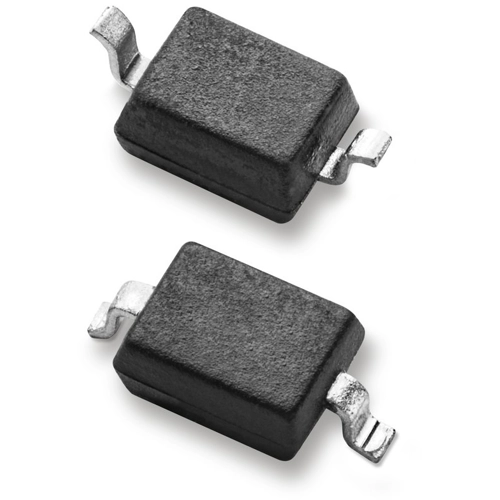

SP4022-01FTG-C Littelfuse TVS Diodes
Image may differ
Unit Price (€ / pc.)
0.3023 € *
Available in 4 Days: 3,000 pcs. - if ordered today
Total Price:
906.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.3023 €

Discrete TVS Diode, SP4022-01FTG-C, Littelfuse

The SP4022-01FTG-C discrete TVS Diode protects against ESD and lightning induced surge events. The low loading capacitance and high surge capability make it ideal for protecting telecommunication ports such as Ethernet and other high speed data interfaces.

Features

  • Low leakage current
  • AEC-Q101 qualified (SOD882)

Applications

  • Security equipment
  • Instrumentation
  • Medical equipment
  • Computers and peripherals
  • Power ports
  • xDSL Interfaces
Technical specifications
Filter Property Value
min. operating temperature -40 °C
Assembly SMD
Version bidirectional
max. operating temperature 125 °C
Capacity 1.3 pF
Breakdown voltage 13.3 V
Enclosure SOD323
Rated blocking voltage 12 V
Logistics
Property Value
Customs tariff number 85411000
Country of origin CN
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
