SP4020-01FTG | Littelfuse

SMD TVS diode, unidirectional, 3.3 V, SOD323, Littelfuse SP4020-01FTG

Order No.: 74P4808
EAN: 4099891816735
MPN:
SP4020-01FTG
Series: SP4020
SP4020-01FTG Littelfuse TVS Diodes

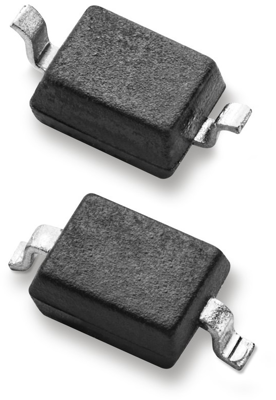

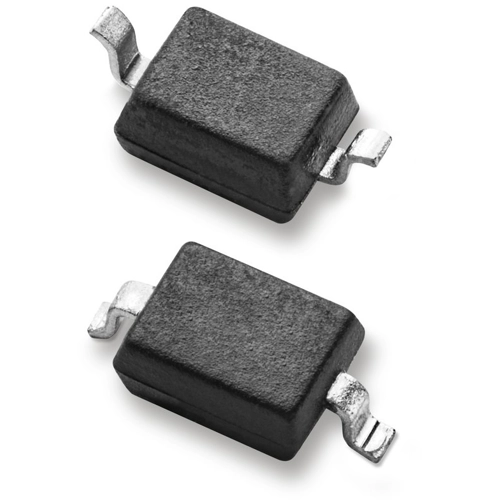

Image may differ
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1,071.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.357 €

Discrete TVS Diode, SP4020-01FTG, Littelfuse

The SP4020-01FTG discrete TVS Diode protects against ESD and lightning induced surge events. The low loading capacitance and high surge capability make it ideal for protecting telecommunication ports such as Ethernet and other high speed data interfaces.

Features

  • Halogen-free, fead-free and RoHS-compliant
  • AEC-Q101 qualified (SOD882)

Applications

  • Power Ports
  • Computers and peripherals
  • Instrumentation
  • Medical equipment
  • 10/100/1000 Ethernet
  • T1/E1/T3/E3
Technical specifications
Rated blocking voltage 3.3 V
Assembly SMD
Enclosure SOD323
Capacity 2.5 pF
Version unidirectional
min. operating temperature -40 °C
max. operating temperature 125 °C
Breakdown voltage 3.5 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
