SP3030-01ETG | Littelfuse

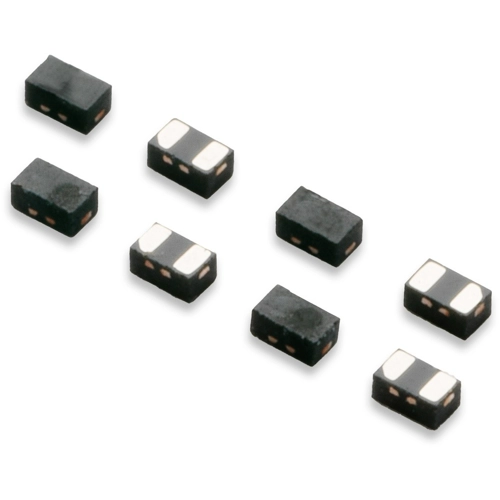

SMD TVS diode, unidirectional, 5 V, SOD882, Littelfuse SP3030-01ETG
Unit Price (€ / pc.)
0.0809 € *
Available in 4 Days: 90,000 pcs. - if ordered today
Unidirectional discrete TVS, SP3030-01ETG, Littelfuse
The SP3030-01ETG includes low capacitance rail to rail diodes with an additional Zener diode to provide protection for electronicequipment that may experience destructive electrostatic discharges (ESD). This robust diode can safely absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (±20kV contact discharge) without performance degradation.
Features
- Small SOD882 packaging helps save board space
- RoHS compliant and lead-free
Applications
- Tablets
- Ultrabook
- Smart Phones
- Digital Cameras
- Automotive electronics
- Portable medical
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 5 V | |
| Enclosure | SOD882 | |
| Capacity | 0.5 pF | |
| Breakdown voltage | 6 V | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | unidirectional | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
