SP1103C-01UTG | Littelfuse

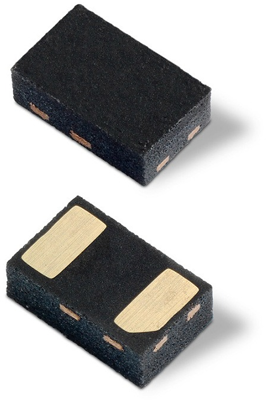

SMD TVS diode, bidirectional, 3.3 V, UDFN1610, Littelfuse SP1103C-01UTG
Unit Price (€ / pc.)
0.2559 € *
Standard delivery time from the manufacturer is: 11 Weeks
Discrete bidirectional TVS Diode, SP1103C-01UTG, Littelfuse
This discrete bidirectional TVS Diode provides protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust diode can safely absorb repetitive ESD strikes at ±30kV without performance degradation.
Features
- AEC-Q101 Qualified
- Halogen free, lead free and RoHS compliant
- Low clamping voltage
Applications
- Switches/Buttons
- Test Equipment/Instrumentation
- Medical equipment
- Notebooks/Desktops/Servers
- Computer peripherals
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 3.3 V | |
| max. operating temperature | 125 °C | |
| Capacity | 130 pF | |
| Assembly | SMD | |
| Breakdown voltage | 3.4 V | |
| min. operating temperature | -40 °C | |
| Enclosure | UDFN1610 | |
| Version | bidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
