SMDJ350A | Littelfuse

SMD TVS diode, unidirectional, 3 kW, 350 V, DO-214AB, Littelfuse SMDJ350A

Order No.: 74P4479
EAN: 4099891813444
MPN:
SMDJ350A
Series: SMDJ
SMDJ350A Littelfuse TVS Diodes

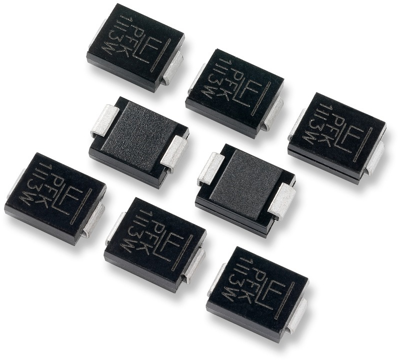

Image may differ
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,605.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
1.2019 €

TVS Diode, SMDJ350A, Littelfuse

The SMDJ350A TVS Diode is is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in telecom, computer, Industrial and consumer electronic applications.

Features

  • Built-in strain relief
  • Excellent clamping capability
  • Low incremental surge resistance
  • Halogen free and RoHS compliant
  • Matte tin lead-free plated
Technical specifications
Continuous power loss 6.5 W
Rated blocking voltage 350 V
Assembly SMD
Enclosure DO-214AB
Pulse power loss 3 kW
Version unidirectional
min. operating temperature -65 °C
max. operating temperature 150 °C
Breakdown voltage 391 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
