SMDJ33A | Littelfuse

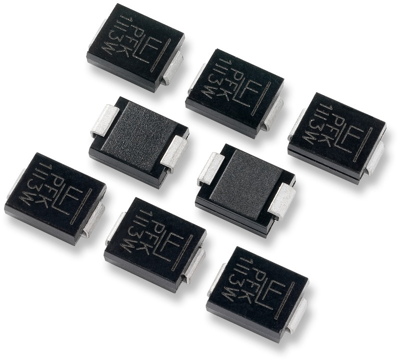

SMD TVS diode, unidirectional, 3 kW, 33 V, DO-214AB, Littelfuse SMDJ33A

Order No.: 74P4475
EAN: 4099891813406
MPN:
SMDJ33A
Series: SMDJ
SMDJ33A Littelfuse TVS Diodes
Image may differ
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1,749.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.5831 €

TVS Diode, SMDJ33A, Littelfuse

The SMDJ33A TVS Diode is is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in telecom, computer, Industrial and consumer electronic applications.

Features

  • Built-in strain relief
  • Excellent clamping capability
  • Low incremental surge resistance
  • Halogen free and RoHS compliant
  • Matte tin lead-free plated
Technical specifications
Continuous power loss 6.5 W
Rated blocking voltage 33 V
Assembly SMD
Enclosure DO-214AB
Pulse power loss 3 kW
Version unidirectional
min. operating temperature -65 °C
max. operating temperature 150 °C
Breakdown voltage 36.7 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
