SMDJ24A | Littelfuse

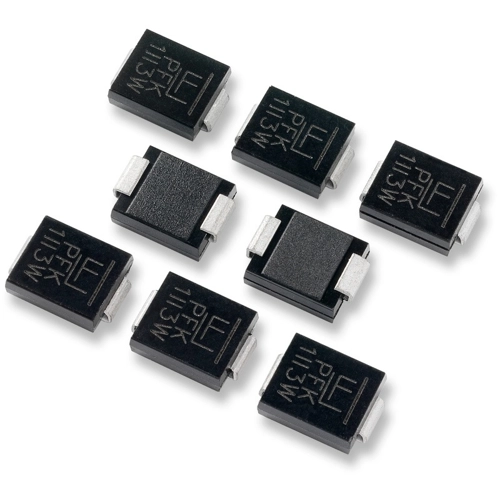

SMD TVS diode, unidirectional, 3 kW, 24 V, DO-214AB, Littelfuse SMDJ24A
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 13 Weeks
TVS Diode, SMDJ24A, Littelfuse
The SMDJ24A TVS Diode is is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in telecom, computer, Industrial and consumer electronic applications.
Features
- Built-in strain relief
- Excellent clamping capability
- Low incremental surge resistance
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 6.5 W | |
| min. operating temperature | -65 °C | |
| Breakdown voltage | 26.7 V | |
| max. operating temperature | 150 °C | |
| Version | unidirectional | |
| Assembly | SMD | |
| Pulse power loss | 3 kW | |
| Rated blocking voltage | 24 V | |
| Enclosure | DO-214AB |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
