SMCJ43CA | Littelfuse

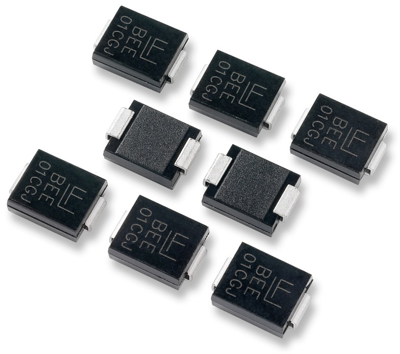

SMD TVS diode, bidirectional, 1.5 kW, 43 V, DO-214AB, Littelfuse SMCJ43CA
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
TVS Diode, SMCJ43CA, Littelfuse
The SMCJ43CA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Excellent clamping capability
- Low incremental surge resistance
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Continuous power loss | 6.5 W | |
| Rated blocking voltage | 43 V | |
| Assembly | SMD | |
| Enclosure | DO-214AB | |
| Pulse power loss | 1.5 kW | |
| Version | bidirectional | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C | |
| Breakdown voltage | 47.8 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
