SMCJ30A | Littelfuse

SMD TVS diode, unidirectional, 1.5 kW, 30 V, DO-214AB, Littelfuse SMCJ30A

Order No.: 37S4008
EAN: 4099879069405
MPN:
SMCJ30A
Series: SMCJ
SMCJ30A Littelfuse TVS Diodes

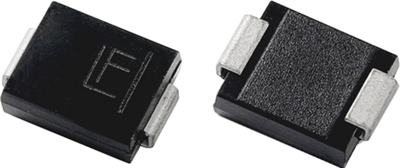

Image may differ
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1,035.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.3451 €

SMD-TVS-Dioden Typ Littelfuse SMCJ.

UL-gelistet; Impuls-Spitzenverlustleistung: 1500 W, Gehäuse: DO214AB, Betriebstemperatur: –55 bis +150 °C. Tabellenangaben: Typ, Nennspannung.

Unidirektionale Ausführung.

Type: SMCJ30A, 30 V

Technical specifications
Continuous power loss 6.5 W
max. operating temperature 150 °C
Enclosure DO-214AB
Rated blocking voltage 30 V
Assembly SMD
Breakdown voltage 36.8 V
Version unidirectional
min. operating temperature -55 °C
Pulse power loss 1.5 kW
Logistics
Customs tariff number 85411000
Country of origin CN
MSL MSL 1
Original Packaging Reel with 3,000 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
