SMCJ110CA | Littelfuse

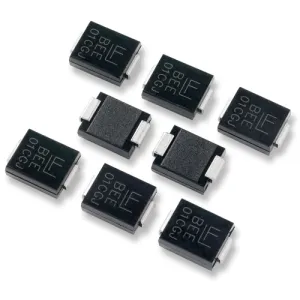

SMD TVS diode, bidirectional, 1.5 kW, 110 V, DO-214AB, Littelfuse SMCJ110CA

Order No.: 74P4278
EAN: 4099891811433
MPN:
SMCJ110CA
Series: SMCJ
SMCJ110CA Littelfuse TVS Diodes
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,249.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.4165 €

TVS Diode, SMCJ110CA, Littelfuse

The SMCJ110CA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Features

  • Built-in strain relief
  • Excellent clamping capability
  • Low incremental surge resistance
  • Halogen free and RoHS compliant
  • Matte tin lead-free plated
Technical specifications
Continuous power loss 6.5 W
Rated blocking voltage 110 V
Assembly SMD
Enclosure DO-214AB
Pulse power loss 1.5 kW
Version bidirectional
min. operating temperature -65 °C
max. operating temperature 150 °C
Breakdown voltage 122 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
