SMCG13A-HRA | Littelfuse

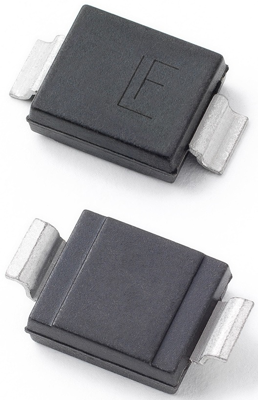

SMD TVS diode, unidirectional, 1.5 kW, 13 V, DO-215AB, Littelfuse SMCG13A-HRA
Unit Price (€ / pc.)
18.2427 € *
Standard delivery time from the manufacturer is: 21 Weeks
TVS Diode, SMCG13A-HRA, Littelfuse
The SMCG13A-HRA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Excellent clamping capability
- Low incremental surge resistance
- Halogen free and RoHS compliant with exemption 7a and 7c-I
- Matte tin lead-free plated
Technical specifications
| Continuous power loss | 6.5 W | |
| Rated blocking voltage | 13 V | |
| Assembly | SMD | |
| Enclosure | DO-215AB | |
| Pulse power loss | 1.5 kW | |
| Version | unidirectional | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C | |
| Breakdown voltage | 14.4 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
