SMBJ18A | Littelfuse

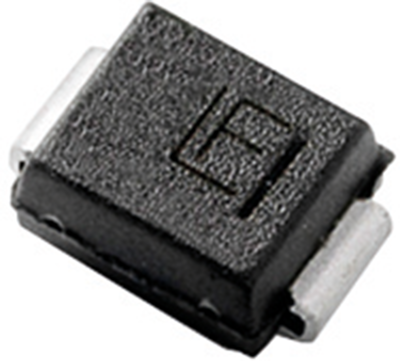

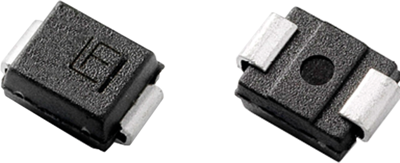

Name: SMD TVS diode, unidirectional, 600 W, 18 V, DO-214AA, Littelfuse SMBJ18A
Brand: Littelfuse
SKU: 24S6716
Availability: OutOfStock

SMD TVS diode, unidirectional, 600 W, 18 V, DO-214AA, Littelfuse SMBJ18A

Order No.: 24S6716

EAN: 4099879067012

MPN:

SMBJ18A

Series: SMBJ

Image may differ

Key Specification:

Pulse power loss 600 W

Rated blocking voltage 18 V

Breakdown voltage 20 V

Continuous power loss 5 W

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0952 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

285.60 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD suppressor diodes, type Littelfuse SMBJ.

Unidirectional, UL-listed; Package: DO214AA. Pulse peak losses: 600 W. Operating temperatures: –55 to +150 °C.

Unidirektionale Ausführung.

Technical attributes (type, voltage (reverse standoff voltage)): SMBJ18A, 18 V

Technical specifications

Filter	Property	Value
	Breakdown voltage	20 V
	Assembly	SMD
	min. operating temperature	-65 °C
	max. operating temperature	150 °C
	Continuous power loss	5 W
	Version	unidirectional
	Rated blocking voltage	18 V
	Pulse power loss	600 W
	Enclosure	DO-214AA
