SMAJ400CA | Littelfuse

SMD TVS diode, bidirectional, 600 W, 400 V, DO-214AC, Littelfuse SMAJ400CA

Order No.: 74P4026
EAN: 4099891808914
MPN:
SMAJ400CA
Series: SMAJ
SMAJ400CA Littelfuse TVS Diodes

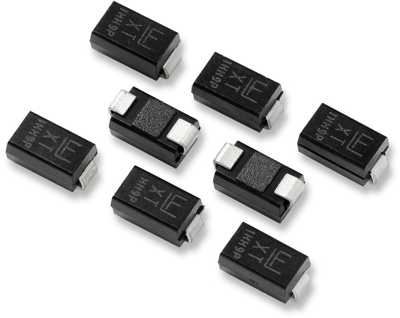

Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,606.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.3213 €

TVS Diode, SMAJ400CA, Littelfuse

The SMAJ400CA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Features

  • Built-in strain relief
  • Glass passivated junction
  • Low inductance
  • Halogen free and RoHS compliant
  • Matte tin lead-free plated
Technical specifications
Continuous power loss 3.3 W
Rated blocking voltage 400 V
Assembly SMD
Enclosure DO-214AC
Pulse power loss 600 W
Version bidirectional
min. operating temperature -65 °C
max. operating temperature 150 °C
Breakdown voltage 447 V
Logistics
Country of origin TW
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
