SMA6J33CA | Littelfuse

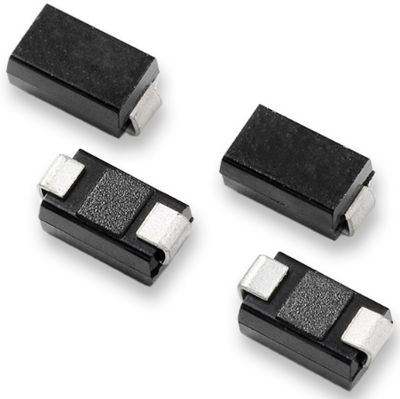

SMD TVS diode, bidirectional, 600 W, 33 V, DO-214AC, Littelfuse SMA6J33CA

Order No.: 74P3871
EAN: 4099891807368
MPN:
SMA6J33CA
Series: SMA6J
SMA6J33CA Littelfuse TVS Diodes
Image may differ
Unit Price (€ / pc.)
0.2047 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,023.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2047 €

TVS Diode, SMA6J33CA, Littelfuse

The SMA6J33CA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Features

  • Built-in strain relief
  • Glass passivated junction
  • Low inductance
  • Excellent clamping capability
  • Matte tin lead-free plated
Technical specifications
Filter Property Value
Assembly SMD
min. operating temperature -65 °C
Pulse power loss 600 W
Continuous power loss 3.3 W
max. operating temperature 150 °C
Version bidirectional
Enclosure DO-214AC
Breakdown voltage 36.7 V
Rated blocking voltage 33 V
Logistics
Property Value
Country of origin CN
Customs tariff number 85411000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
