SMA6J110A | Littelfuse

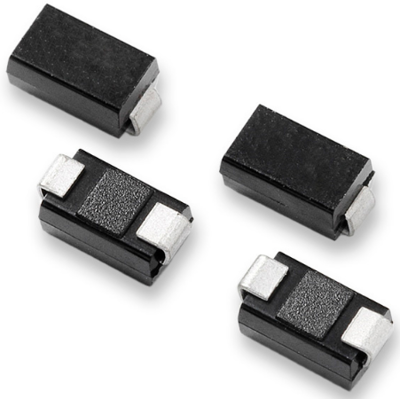

SMD TVS diode, unidirectional, 600 W, 110 V, DO-214AC, Littelfuse SMA6J110A
Unit Price (€ / pc.)
0.2047 € *
Standard delivery time from the manufacturer is: 12 Weeks
TVS Diode, SMA6J110A, Littelfuse
The SMA6J110A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- Matte tin lead-free plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 110 V | |
| Enclosure | DO-214AC | |
| Continuous power loss | 3.3 W | |
| Pulse power loss | 600 W | |
| Breakdown voltage | 122 V | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Version | unidirectional | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
