SLD48U-017 | Littelfuse
TVS diode, Unidirectional, 5 kW, 48 V, P600, SLD48U-017
Unit Price (€ / pc.)
2.0349 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
TVS Diode, SLD48U-017, Littelfuse

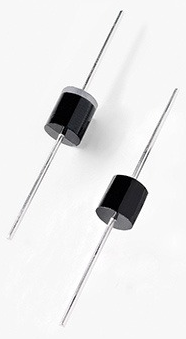

This product is packaged in a highly reliable industry standard P600 axial leaded package and is designed to provide precision overvoltage protection for sensitive electronics.
Features
- Excellent clamping capability
- Typical failure mode is short from over-specified voltage or current
- Low incremental surge resistance
- Matte tin lead-free plated
- Halogen-free
- RoHS compliant
Applications
- Inductive load switching
- Alternator load dump
Technical specifications
| Version | Unidirectional | |
| Continuous power loss | 8 W | |
| Breakdown voltage | 53.3 V | |
| Enclosure | P600 | |
| Pulse power loss | 5 kW | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Rated blocking voltage | 48 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
