SLD13-018 | Littelfuse

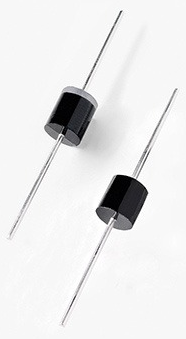

TVS diode, bidirectional, 5 kW, 13 V, P600, Littelfuse SLD13-018
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: 12 Weeks
TVS Diode, SLD13-018, Littelfuse
This product is packaged in a highly reliable industry standard P600 axial leaded package and is designed to provide precision overvoltage protection for sensitive electronics.
Features
- Excellent clamping capability
- Typical failure mode is short from over-specified voltage or current
- Low incremental surge resistance
- Matte tin lead-free plated
- Halogen-free
- RoHS compliant
Applications
- Inductive load switching
- Alternator load dump
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 8 W | |
| Rated blocking voltage | 13 V | |
| Assembly | THT | |
| Enclosure | P600 | |
| Pulse power loss | 5 kW | |
| Version | bidirectional | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 175 °C | |
| Breakdown voltage | 14.4 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
