SD24-01FTG | Littelfuse

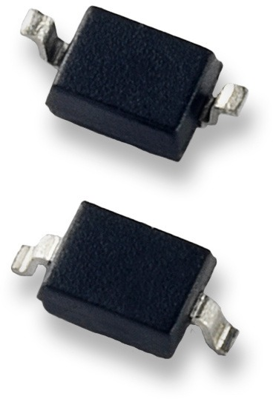

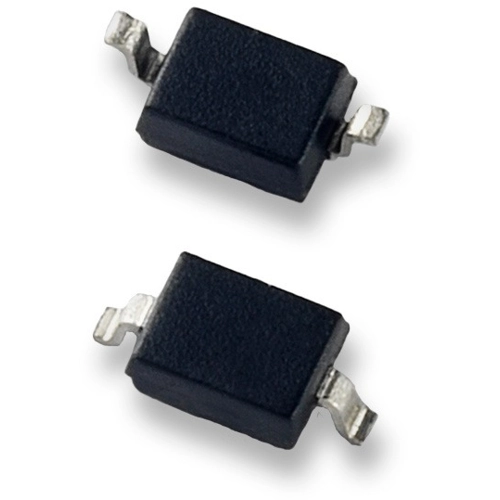

SMD TVS diode, unidirectional, 450 W, 24 V, SOD323, Littelfuse SD24-01FTG
Unit Price (€ / pc.)
0.1678 € *
Standard delivery time from the manufacturer is: 13 Weeks
Discrete unidirectional TVS Diode, SD24-01FTG, Littelfuse
This product is designed for use in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events.
Features
- Low clamping voltage
- Low leakage current
- AEC-Q101 qualified
- RoHS Compliant and lead free
- Moisture sensitivity level
Applications
- Switches/Buttons
- Test equipment/Instrumentation
- Medical equipment
- Notebooks/Desktops/Servers
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| Breakdown voltage | 26.7 V | |
| max. operating temperature | 125 °C | |
| Version | unidirectional | |
| Assembly | SMD | |
| Pulse power loss | 450 W | |
| Rated blocking voltage | 24 V | |
| Enclosure | SOD323 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
